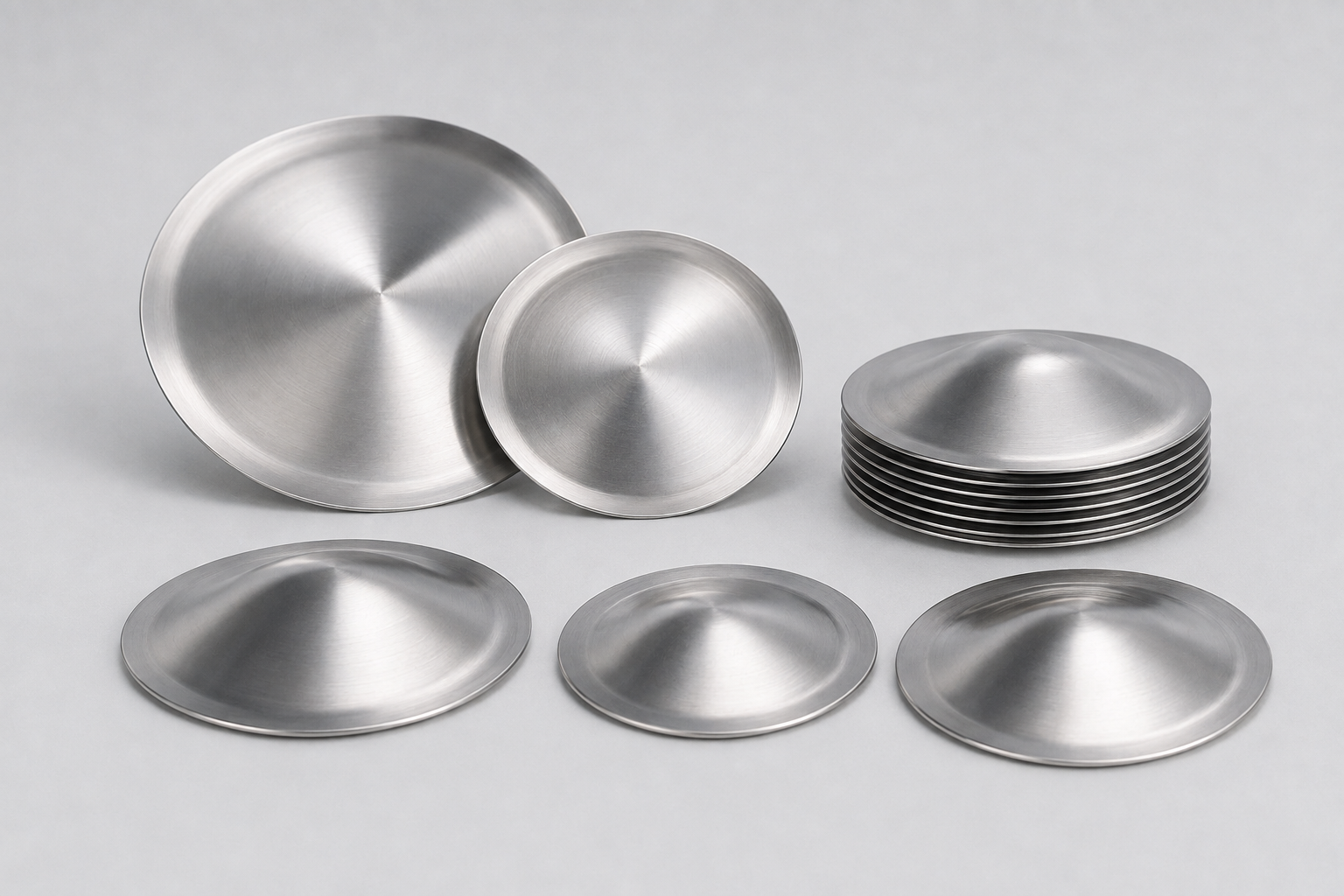

Precision metal diaphragms act as the flexible sealing and force-transmitting element in high-purity valves. Reliable performance depends on the combined control of alloy condition, thickness, formed geometry, heat treatment, surface condition, assembly load and operating cycle.
Material Options
- UNS R30003 cobalt-based alloy — considered for demanding applications requiring high strength, corrosion resistance and fatigue performance, including customer-specified Phynox® or Elgiloy® grades.
- Alloy C22 / UNS N06022 — considered where aggressive process chemistry places additional demands on corrosion resistance.
- Other corrosion-resistant alloys — reviewed according to the drawing, process media and qualification requirements.
Project Support
- Strip and raw-material sourcing with certificate review
- Material condition, diaphragm profile and stack configuration review
- Forming and heat-treatment process coordination
- Surface finish, polishing, cleaning and packaging requirements
- Dimensional inspection and project-specific qualification documentation
Information Required for Quotation
Please provide the valve application, drawing, diaphragm diameter and thickness, formed profile, number of diaphragms per stack, process media, pressure, temperature, target cycle life, surface and cleanliness requirements, prototype quantity and estimated annual demand.
Final material availability, manufacturing route, tolerances, testing and documentation are confirmed for each project before supply.
精密金属膜片是高纯阀门中的柔性密封与力传递元件。可靠性能取决于对合金状态、厚度、成形几何、热处理、表面状态、装配载荷及工作循环的综合控制。
材料选择
- UNS R30003 钴基合金——适用于对高强度、耐腐蚀性和疲劳性能要求较高的应用，包括客户指定的 Phynox® 或 Elgiloy® 牌号。
- C22 合金 / UNS N06022——适用于腐蚀性工艺介质对耐腐蚀性提出更高要求的场合。
- 其他耐腐蚀合金——根据图纸、工艺介质及认证要求进行评审。
项目支持
- 带材及原材料采购与材质证明审核
- 材料状态、膜片轮廓及膜片组配置评审
- 成形与热处理工艺协同
- 表面质量、抛光、清洗及包装要求
- 尺寸检验及项目专项认证文件
询价所需信息
请提供阀门应用、图纸、膜片直径与厚度、成形轮廓、每组膜片数量、工艺介质、压力、温度、目标循环寿命、表面与洁净度要求、样件数量及预计年需求量。
最终材料可供性、制造路线、公差、测试及文件要求将在供货前按具体项目确认。
